Best Practice

LOCATION: Asphalt/Coating plant ARTICLE YEAR 2013
ACTIVITY: Maintenance & Housekeeping COMPANY: Aggregate Industries
SUB ACTIVITY: N/A COMPANY LOCATION: Express Asphalt, Darwen
BEST PRACTICE No: BP896 COMPANY TEL: 0780 226 0584
COUNTRY OF ORIGIN: United Kingdom
TITLE

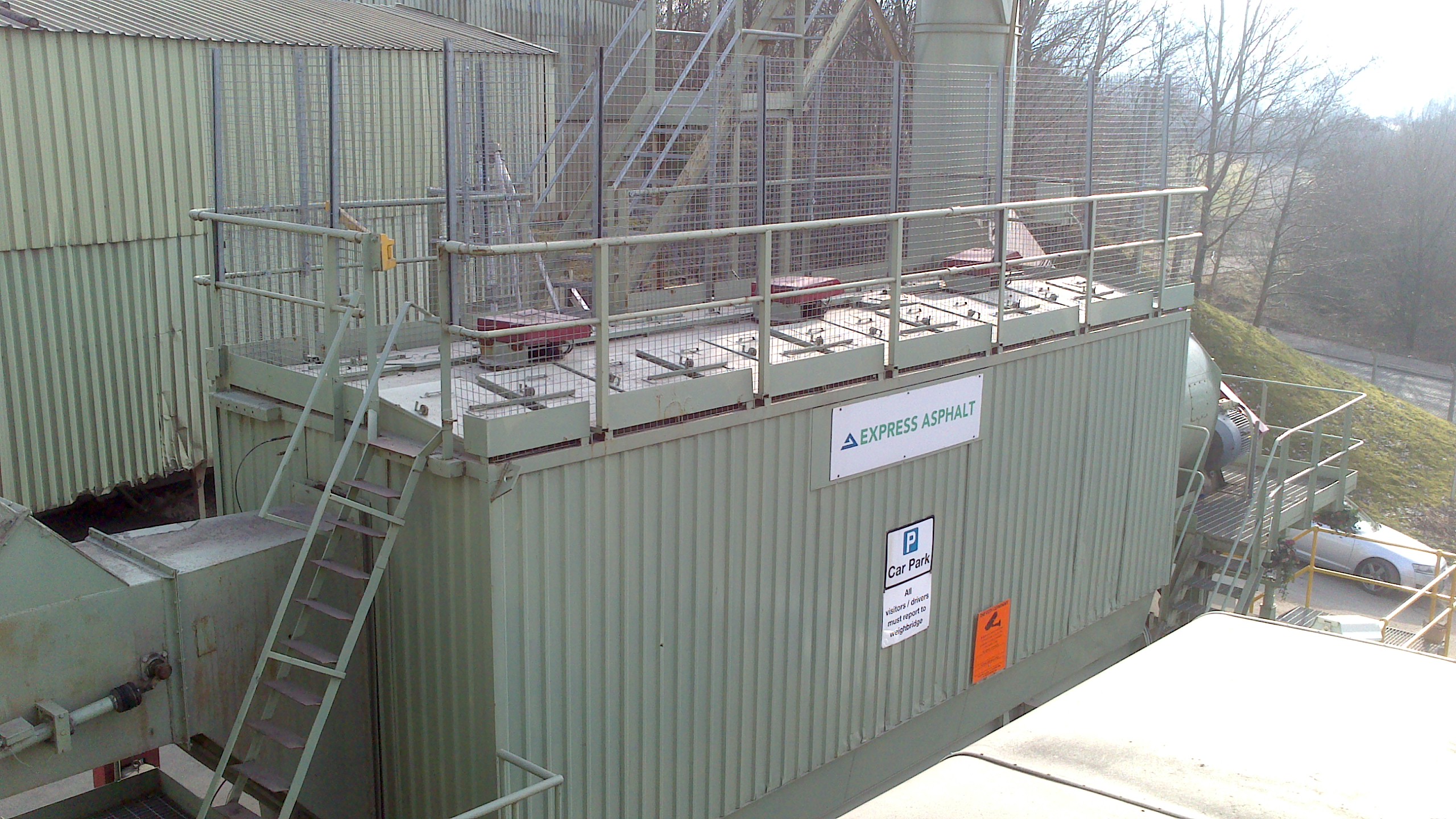

Bag house guardian
ARTICLE
DESCRIPTION

Express Asphalt was experiencing 2 to 3 safety lock-outs per week as the conventional temperature protection of asphalt bag house using thermocouples was not operating effectively. The “actual” gas temperatures were often running beyond the 170 degrees C set for the burner.

At high temperatures, the fabric of the filter bags experience high stress and degrade which can lead to the ignition of any residual flammable deposits on the outer surface of the bag. Following a bag house fire at another company, the protection systems were reviewed and a new control system was installed called the “Bag House Guardian”. Instead of looking at actual temperatures it measures the ‘rate’ of temperature rise and, if it calculates that a thermal lock-out is ‘likely’ to occur, it automatically trims the burner back to prevent high gas temperatures being produced.

BENEFITS

• No temperature related lock-outs and reduced fire risk.
• Extended bag life, improved filtration and lower emission levels.
• Faster turnaround times for our customers with fewer stoppages
• Cooler plant building and improved energy efficiency.
ARTICLE IMAGES
Click image to enlarge



pdf document available
