Incident alert
LOCATION:
CONCRETE PRODUCTS PLANT
ACTIVITY:
MANUAL HANDLING AND STORAGE
DATE ISSUED:
27/04/2016 15:34:34
TITLE
Catastrophic failure of clamp on forklift
COUNTRY OF ORIGIN
United Kingdom
ACCIDENT / INCIDENT DETAILS
A clamp which was attached to a Linde HD 50 forklift failed catastrophically when a steel rod sheared. This resulted in a pack being dropped as it was being placed on the ground. The incident could have been much worse as packs can be stacked 4 to 5 cubes high at full extension. No injury occurred during the incident, but the potential was far greater. Investigations identified that the clamp and truck had been in service just under three years and that the clamp attachment had been serviced within the last 9-10 months.
ACCIDENT / INCIDENT IMAGES
Click image to enlarge
Click image to enlarge

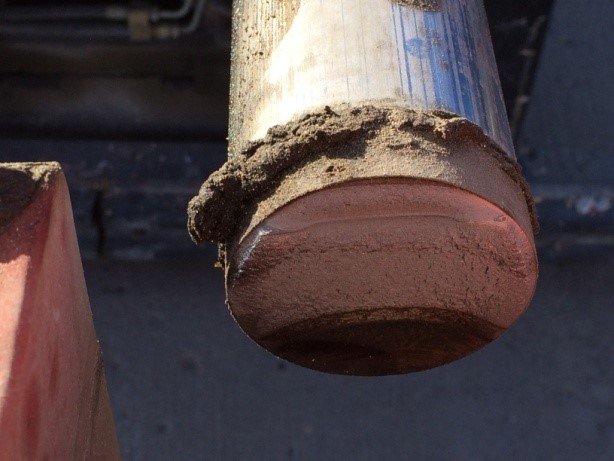

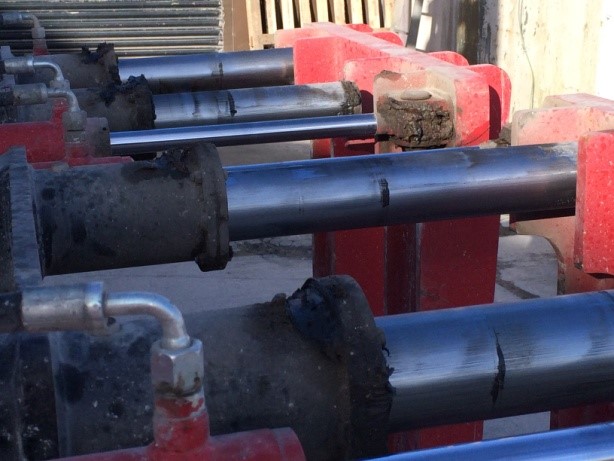

Sheared rod on clamp
LEARNING POINTS / ACTIONS TAKEN
Learning Points:
• The service of the clamp attachment and inspection routines failed to pick up this fault
• Existing clamp attachments should be checked / inspected by NDT to ensure they are crack free Actions:
• Amend service routine to cover NDT of area of rod that failed
• Review frequency of inspection and service
