Falling cladding from roller door
LOCATION:
ASPHALT/COATING PLANT
ACTIVITY:
MAINTENANCE & HOUSEKEEPING
TITLE
Falling cladding from roller door
COUNTRY OF ORIGIN
WHAT HAPPENED
An incident occurred Dagenham Coating Plant where cladding that is fitted to protect roller door mechanism for ingress of dust and spillage fell and struck the person using the door. A 3 metre section fell and struck him on his safety helmet, throwing him into the wall nearby. He suffered severe concussion and whiplash injuries to his neck and was off work for 7 days.
The same cladding had detached the previous year, but crucially did not fall. It was reported as a near miss and repairs carried out.
ACCIDENT / INCIDENT IMAGES
Click image to enlarge

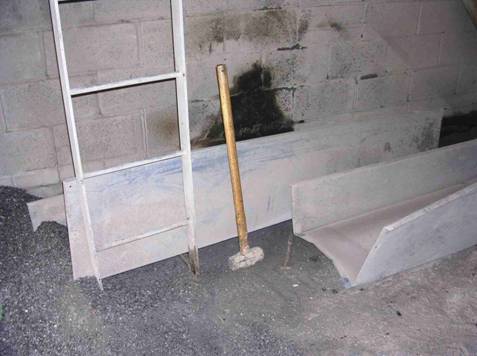

Picture showing piece that fell
Click image to enlarge

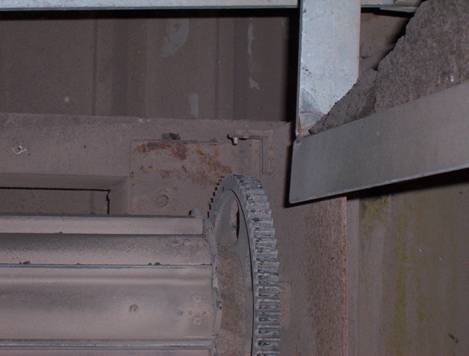

Bracket with rivet still in place
LEARNING POINTS / ACTIONS TAKEN
This accident highlights the following issues:
• The cladding was only pop-riveted onto the securing brackets in 4 places at opposite ends of the roller door
• There was no centre securing bracket included in the design. The 2 pieces were simply riveted together for strength
• When the repair was carried out in 2004, a stronger method involving bolts should have been employed.
• The design of the cladding, with its flat top edge, allows spillage to settle and increase the load bearing weight to the securing rivets and brackets.
LEARNING POINTS / ACTIONS IMAGES
LOCATION:
ASPHALT/COATING PLANT
ACTIVITY:
MAINTENANCE & HOUSEKEEPING
