Loading Chute Detachment
ACTIVITY:
PRODUCTION AND PROCESSING
SUB ACTIVITY:
AGGREGATE PROCESSING
TITLE
Loading Chute Detachment
COUNTRY OF ORIGIN
WHAT HAPPENED
Loading chute (with swing chute attached) became detached from the plant frame & swung down on the rear hinge coming to rest on truck mixer loading hopper. On inspection only one side had been bolted as there was no provision holes in the other side, it also appeared that the nuts on one or more of the bolts had come off.
It was found during the investigation that the chute was fully missing 2 of the six fixing bolts down one side. The remaining bolts on the other side had all become slack. If the remaining nuts had been on the bolts, and the chute had failed due to excess weight there would have been extensive damage to the chute flange with the bolts ripping through the existing bolt holes, this was not the case. So the nuts must of slackened and came off beforehand. Leading to the chute fixings failure.

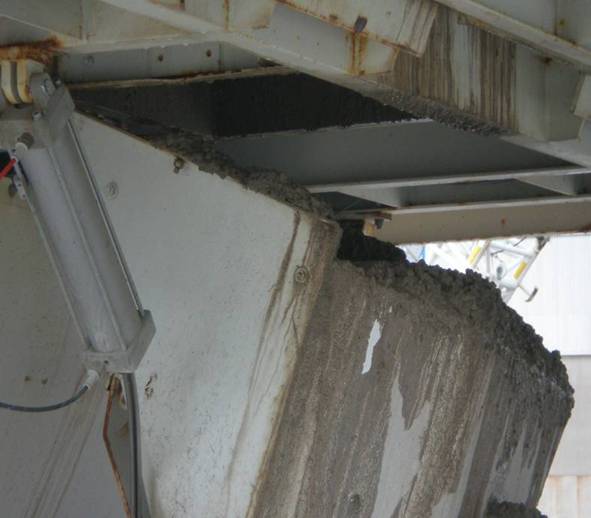

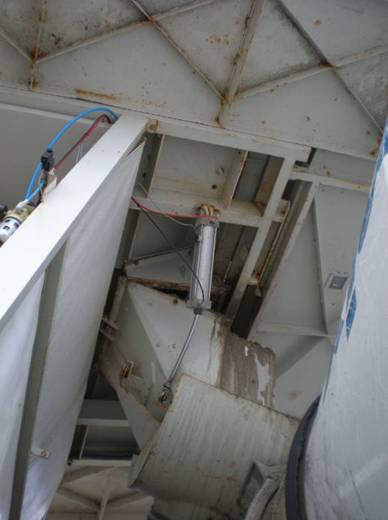

ACCIDENT / INCIDENT IMAGES
Click image to enlarge
Click image to enlarge
LEARNING POINTS / ACTIONS TAKEN
All ELBA110 batch plants and all similar discharge point systems should immediately be assessed to ensure that the main loading chute assembly is fully attached to the main structure with all fixing bolts applied and fully tightened.
LEARNING POINTS / ACTIONS IMAGES
